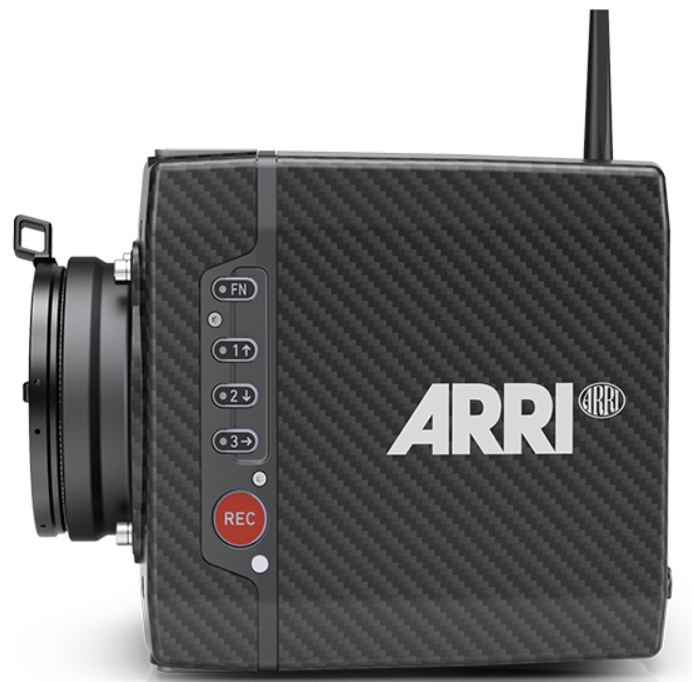

Body (Licensed) / ARRI Look Library, ARRIRAW, 4:3
Memory Cards (4ea) / Tested by ARRI SanDisk CFast 2.0 256GB
Matte Box / ARRI LMB 4X5
Filters (7ea) / ND 0.3, 0.6, 0.9, 1.2, CL, PL
Follow Focus / ARRI FF-5
Shoulder Rig / WOODENCAMERA
Head / Sachtler Studio 9+9
Tripods / Ronford Heavy duty Tall & Short 150mm Bowl, Hi-Hat
Monitors (3ea) / TVLogic & SmallHD 7"(2ea), 18"(1ea)
Batteries (8ea) / 290W(4ea), 195W(4ea), 4ch Charger
Cart / Backstage Magliner Junior or Motion9
Technical Data
Sensor Type : Super 35 format ARRI ALEV III CMOS sensor with Bayer pattern color filter array
Sensor Size :
28.25 x 18.17 mm / 1.112 x 0.715"
33.59 mm / 1.322"
Sensor Frame Rates : 0.75 - 200fps
Sensor Active Image Area (photosites) :
S16 HD: 1600 x 900
HD: 2880 x 1620
2K: 2868 x 1612
3.2K: 3200 x 1800
4K UHD: 3200 x 1800
4:3 2.8K: 2880 x 2160
2.39:1 2K Ana.: 2560 x 2145
HD Ana.: 1920 x 2160
ARRIRAW 16:9 2.8K: 2880 x 1620
Open Gate 3.4K: 3424 x 2202
Recording File Image Content (pixel) :
ProRes S16 HD: 1920 x 1080
ProRes HD: 1920 x 1080
ProRes 2K: 2048 x 1152
ProRes 3.2K: 3200 x 1800
ProRes 4K UHD: 3840 x 2160
ProRes 4:3 2.8K: 2880 x 2160
ProRes HD Anamorphic: 1920 x 1080
ProRes 2.39:1 2K Anamorphic: 2048 x 858
ARRIRAW 16:9 2.8K: 2880 x 1620
ARRIRAW Open Gate 3.4K: 3424 x 2202
ARRIRAW 4:3 2.8K (OG 3.4K): 3424 x 2202
ARRIRAW 2.39:1 2K Ana. (OG 3.4K): 3424 x 2202
ARRIRAW 16:9 HD Ana. (OG 3.4K): 3424 x 2202
Exposure Latitude :
14+ stops over the entire sensitivity range from EI 160 to EI 3200 as measured with the ARRI Dynamic Range Test Chart (DRTC-1)
Exposure Index :
Adjustable from EI 160-3200 in 1/3 stops
EI 800 base sensitivity
Shutter : Electronic shutter, 5.0°- 356° or 1s - 1/8000s
Recording Formats :
MXF/ARRIRAW
ProRes 4444 XQ
ProRes 4444
ProRes 422 (HQ)
ProRes 422
ProRes 422 (LT)
Recording Frame Rates :
ProRes HD: 0.75 - 200 fps
ProRes S16 HD: 0.75 - 200 fps
ProRes 2K: 0.75 - 200 fps
ProRes 3.2K: 0.75 - 60 fps
ProRes UHD: 0.75 - 60 fps
ProRes 4:3 2.8K: 0.75 - 50 fps
ProRes 2:39:1 2K Ana.: 0.75 - 120 fps
ProRes HD Ana.: 0.75 - 120 fps
MFX/ARRIRAW 16:9 2.8K: 0.75 - 48 fps
MFX/ARRIRAW 3.4K Open Gate: 0.75 - 30 fps
Viewfinder Resolution (pixel) : 1280 x 720
Color Output :
Rec 709
Rec 2020
Log C
Custom Look (ARRI Look File ALF-2)
Look Control :
Import of custom 3D LUT
ASC CDL parameters (slope, offset, power, saturation)
Knee, gamma, saturation, black gamma, saturation by hue
Support of ARRI Look Library
Filters :
Built-in motorized ND filters 0.6, 1.2, 2.1
Fixed optical low pass, UV, IR filter
Image Outputs :
1x proprietary signal output for MVF-1 viewfinder
2x SDI Out: 1,5G (SMPTE ST292-1), 3G (SMPTE ST425-1, ST425-3), 6G & DL 6G (SMPTE ST2081-10, ST2081-11)
uncompressed video with embedded audio and metadata
Exposure and Focus Tools :
False Color
Zebra
Zoom
Waveform
Aperture and Color Peaking
Audio Input :
1x LEMO 5pin balanced stereo line in
(Line input max. level +24dBu correlating to 0dBFS)
Audio Output :
SDI (embedded)
Audio Recording :
2 channel linear PCM, 24 bit 48 kHz
Interfaces :
1x LEMO 5pin LTC Timecode In/Out
1x LEMO 10pin Ethernet for remote control and service
1x BNC Sync In (optional activation through ARRI Service)
1x LEMO 7pin EXT multi purpose accessory interface w. RS pin and unregulated power output (outputs battery voltage)
1x LEMO 4pin LBUS (on lens mount) for lens motors, daisy chainable
1x USB 2.0 (for user setups, look files etc)
Wireless Interfaces
Built-in WiFi module (IEEE 802.11b/g)
Built-in White Radio for ARRI lens and camera remote control
Flange Focal Depth :
PL mount: 52 mm
LPL mount: 44 mm
Power Consumption :
min. 43W
max. 84W
(Camera body with MVF-1)
Measurements (HxWxL) :
140 x 125 x 185 mm / 5.5 x 4.9 x 7.3"
(camera body with PL lens mount)
Weight :
~ 2.3 kg / ~ 5 lbs
(camera body with titanium PL lens mount)
Operating Temperature :
-20° C to +45° C / -4° F to +113° F @ 95% relative humidity max, non condensing, splash and dust proof through sealed electronics
Storage Temperature :
-30° C to +70° C / -22° F to +158° F
