eatures of the Mark 4 Fluid Head

• 4 position pan and tilt drag settings, including zero drag position
• 6 position counterbalance settings, including zero balance position. For payload 5kg
• 75 mm. bowl levelling with bubble level
• Sliding quick release plate. Sliding range 104mm. Including ½” and 3/8” screw, as well as a pin
• Spare camera screws can be stored in the head
• Tilt range +90° / -75°
• Operating temperature: -40° to +60° C / -40 to +140° F

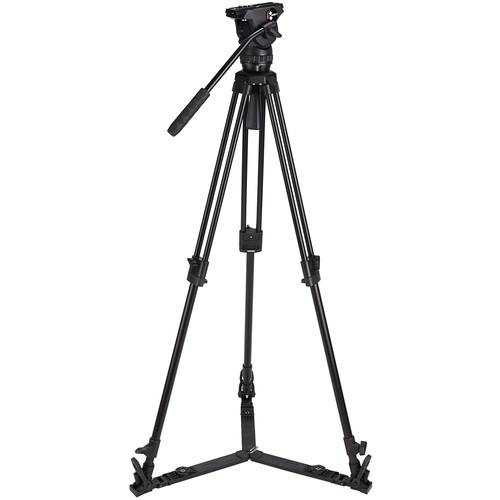

Features of the Mark 4 Tripod

• 2 stage aluminium tripod ? lightweight and strong
• Maximum height 1.69m
• Minimum height 0.79m
• Transport length 0.84m
• Mid-level spreader operates on uneven ground and adds to torsional rigidity
• Rubber feet grip smooth floors, but re-wind to reveal ground spikes
