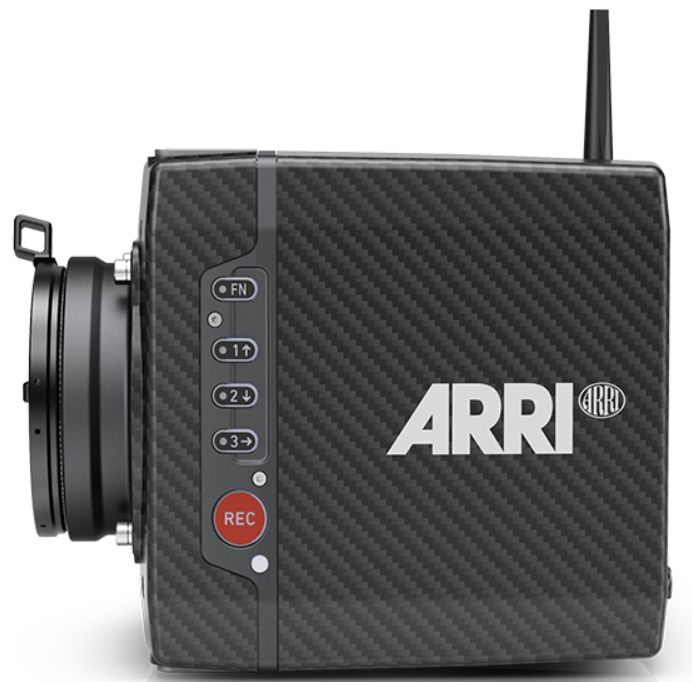

Technical Data

Sensor Type : Super 35 format ARRI ALEV III CMOS sensor with Bayer pattern color filter array

Sensor Size :

28.25 x 18.17 mm / 1.112 x 0.715"
? 33.59 mm / 1.322"

Sensor Frame Rates : 0.75 - 200fps

Sensor Active Image Area (photosites) :

S16 HD: 1600 x 900
HD: 2880 x 1620
2K: 2868 x 1612
3.2K: 3200 x 1800
4K UHD: 3200 x 1800
4:3 2.8K: 2880 x 2160
2.39:1 2K Ana.: 2560 x 2145
HD Ana.: 1920 x 2160
ARRIRAW 16:9 2.8K: 2880 x 1620
Open Gate 3.4K: 3424 x 2202

Recording File Image Content (pixel) :
ProRes S16 HD: 1920 x 1080
ProRes HD: 1920 x 1080
ProRes 2K: 2048 x 1152
ProRes 3.2K: 3200 x 1800
ProRes 4K UHD: 3840 x 2160
ProRes 4:3 2.8K: 2880 x 2160
ProRes HD Anamorphic: 1920 x 1080
ProRes 2.39:1 2K Anamorphic: 2048 x 858
ARRIRAW 16:9 2.8K: 2880 x 1620
ARRIRAW Open Gate 3.4K: 3424 x 2202
ARRIRAW 4:3 2.8K (OG 3.4K): 3424 x 2202
ARRIRAW 2.39:1 2K Ana. (OG 3.4K): 3424 x 2202
ARRIRAW 16:9 HD Ana. (OG 3.4K): 3424 x 2202

Exposure Latitude :
14+ stops over the entire sensitivity range from EI 160 to EI 3200 as measured with the ARRI Dynamic Range Test Chart (DRTC-1)

Exposure Index :

Adjustable from EI 160-3200 in 1/3 stops
EI 800 base sensitivity

Shutter : Electronic shutter, 5.0°- 356° or 1s - 1/8000s

Recording Formats :
MXF/ARRIRAW
ProRes 4444 XQ
ProRes 4444
ProRes 422 (HQ)
ProRes 422
ProRes 422 (LT)

Recording Frame Rates :
ProRes HD: 0.75 - 200 fps
ProRes S16 HD: 0.75 - 200 fps
ProRes 2K: 0.75 - 200 fps
ProRes 3.2K: 0.75 - 60 fps
ProRes UHD: 0.75 - 60 fps
ProRes 4:3 2.8K: 0.75 - 50 fps
ProRes 2:39:1 2K Ana.: 0.75 - 120 fps
ProRes HD Ana.: 0.75 - 120 fps
MFX/ARRIRAW 16:9 2.8K: 0.75 - 48 fps
MFX/ARRIRAW 3.4K Open Gate: 0.75 - 30 fps

Viewfinder Resolution (pixel) : 1280 x 720

Color Output :
Rec 709
Rec 2020
Log C
Custom Look (ARRI Look File ALF-2)

Look Control :
Import of custom 3D LUT
ASC CDL parameters (slope, offset, power, saturation)
Knee, gamma, saturation, black gamma, saturation by hue
Support of ARRI Look Library

Filters :
Built-in motorized ND filters 0.6, 1.2, 2.1
Fixed optical low pass, UV, IR filter

Image Outputs :
1x proprietary signal output for MVF-1 viewfinder
2x SDI Out: 1,5G (SMPTE ST292-1), 3G (SMPTE ST425-1, ST425-3), 6G & DL 6G (SMPTE ST2081-10, ST2081-11)
uncompressed video with embedded audio and metadata

Exposure and Focus Tools :
False Color
Zebra
Zoom
Waveform
Aperture and Color Peaking

Audio Input :
1x LEMO 5pin balanced stereo line in
(Line input max. level +24dBu correlating to 0dBFS)

Audio Output :
SDI (embedded)

Audio Recording :
2 channel linear PCM, 24 bit 48 kHz

Interfaces :
1x LEMO 5pin LTC Timecode In/Out
1x LEMO 10pin Ethernet for remote control and service
1x BNC Sync In (optional activation through ARRI Service)
1x LEMO 7pin EXT multi purpose accessory interface w. RS pin and unregulated power output (outputs battery voltage)
1x LEMO 4pin LBUS (on lens mount) for lens motors, daisy chainable
1x USB 2.0 (for user setups, look files etc)

Wireless Interfaces
Built-in WiFi module (IEEE 802.11b/g)
Built-in White Radio for ARRI lens and camera remote control

Flange Focal Depth :
PL mount: 52 mm
LPL mount: 44 mm

Power Consumption :
min. 43W
max. 84W
(Camera body with MVF-1)

Measurements (HxWxL) :
140 x 125 x 185 mm / 5.5 x 4.9 x 7.3"
(camera body with PL lens mount)

Weight :
~ 2.3 kg / ~ 5 lbs
(camera body with titanium PL lens mount)

Operating Temperature :
-20° C to +45° C / -4° F to +113° F @ 95% relative humidity max, non condensing, splash and dust proof through sealed electronics

Storage Temperature :
-30° C to +70° C / -22° F to +158° F
